EspañolThe Plug & Play B4 is suitable for manual and economical automation
-
Speed:
6 kg/h -
Maximum glue output capacity:
29,3 kg/h pump 7 cc
The Plug & Play B4 is suitable for manual and economical automation
GET A QUOTE
DOWNLOAD
The Plug & Play B4 Spraying Machine is designed for seamless integration into both manual and economical automated operations, offering intuitive control through the SmartControl operating system for effortless operation. Its servo-driven film feeding mechanism guarantees precise application and consistent quality, while the streamlined design ensures easy maintenance, fast changeovers, and reduced sound emissions—all within a protected, user-friendly framework that requires minimal training.
| Model | B4-P (displacement pump) | B4-E (gear pumps) |
| Cylinder capacity | 4 Liter | 4 Liter |
| Maximum glue output capacity (*) | 29,3 kg/h pump 7 cc | 6 kg/h pump 2 cc/rev (50 rpm) |
| Maximum melt speed (*) | 6 kg/h | 6 kg/h |
| output interface | 2 | 2 |
| temperature range | 40 to 200℃ | 40 to 200℃ |
| Temperature control accuracy | RTD ±0,5℃ (±1℉) | RTD ±0,5℃ (±1℉) |
| Maximum working pressure | 81,6 bar (1183 psi) | 40 bar |
| maximum power (at 230 VAC) | 3.680 W (16A) | 3.680 W (16A) |
| Power Requirements | LN - 230V 50/60 Hz + PE | LN - 230V 50/60 Hz+PE |
| External function. | temperature ready | Temperature ok |

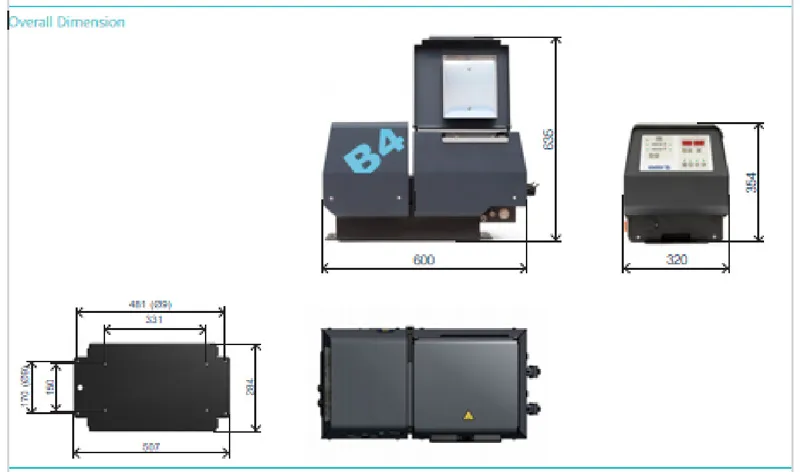

| Overall dimension | 600×320×354 | 600×320×354 |
| Weight | 36 kg | 38 kg |
