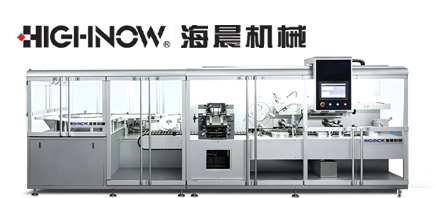

High-speed Automatic Production Line for syringe/Ampoule/Vial/Oral Liquid/Cartridge

We engineer our lines for a demonstrable OEE of ≥87%, calculated through: Availability (A≥95%) via sub-20-minute format changeovers and predictive maintenance alerts; Performance (P≥98%) maintaining speeds up to 400 units/min with <0.5% speed loss; Quality (Q≥99.5%) using in-line vision systems with >99.98% defect detection. Our SCADA system provides real-time OEE dashboards, tracking the formula OEE = A × P × Q with data exportable for your quality system. This transparency allows precise bottleneck identification and ROI calculation.

We implement dual-validation methodology for critical leak testing. Primary detection uses high-resolution vacuum decay technology per ASTM F2338-09, capable of detecting leaks ≥5 microns. Secondary verification is performed via weight-based mass comparison with precision ±0.01g. Our systems maintain complete validation packages including Installation Qualification (IQ), Operational Qualification (OQ) and Performance Qualification (PQ) protocols, with test data showing ≥99.95% detection probability for micro-leaks in formal stability studies.

Our integrated cleanroom-compatible design maintains ISO 14644-1 Class 5 standards at critical zones. Particulate control combines: BERNSTEIN HEPA-filtered laminar airflow (0.45 m/s ±0.1); anti-static surfaces reducing particle adhesion; and IR-backed particulate inspection cameras detecting contaminants ≥25μm. Validation data shows <3 particles >0.5μm per m³ at the filling station, exceeding USP <788> requirements for injectable products.

Our proprietary gentle-handling system maintains breakage rates <0.01% through: SUS304 stainless steel guides with Teflon coating; servo-controlled acceleration profiles limiting G-forces to <2G; and vision-guided precision placement eliminating mechanical impact. Each line includes automated glass fragment detection using 5MP color scan cameras. We validate breakage rates using 3-lot statistical analysis with 95% confidence intervals, providing certified test reports for your quality audits.

Our regenerative drive system reduces energy consumption by up to 40% compared to conventional systems. Detailed analysis shows: Base load: 18kW; Peak consumption: 32kW during acceleration; Regeneration recovery: 8-12kW during deceleration. The actual energy cost per 100,000 units is approximately €5.80 (based on €0.15/kWh), verified through ISO 50001 energy monitoring. Each motor functions as generator during stoppages, feeding power back to the DC bus.

We implement three-level contamination control: 1) Material-level using 316L stainless steel with Ra≤0.4μm surface finish; 2) Design-level with zero product accumulation zones and quick-disconnect components; 3) Process-level employing validated CIP (Clean-in-Place) systems achieving 3-log reduction in bioburden. Swab testing results consistently show <1 CFU/25cm² after cleaning validation, meeting most stringent regulatory requirements.

Our TCO modeling accounts for: Capital investment (15%); Energy consumption (21%); Maintenance costs (18%); Labor impact (32%); Quality losses (14%). The analysis demonstrates 28% lower TCO versus industry average, achieved through: ≥98.5% uptime reducing opportunity cost; 30% fewer spare parts via standardized components; 45% less maintenance time with modular design. We provide customized TCO calculators with your specific utility rates and labor costs.

Our Nest-Based Quick Changeover System enables 12-minute format changes through: Pre-set tooling plates with RFID identification; Motorized adjustment replacing manual calibration; Recipe-driven parameters automating all settings. Validation data shows ±0.15mm repeatability across 200+ change cycles. The system includes digital work instructions with torque specifications and alignment procedures, eliminating operator dependency.

We deliver full Part 11 compliance through: Electronic signature workflows with dual-level authentication; Audit trails capturing all parameter changes; Data encryption both at rest and in transit. Our system maintains complete data integrity with automatic backup every 4 hours and 7-year data retention. Each transaction is time-stamped and includes the operator ID, reason for change, and previous values for complete traceability.

Our 4-tier support framework guarantees: Tier 1: Remote diagnostics within 15 minutes (24/7); Tier 2: On-site support dispatch within 8 hours for critical issues; Tier 3: Spare parts delivery within 24 hours globally; Tier 4: Continuous improvement feedback integration. Performance metrics show 98% first-contact resolution rate and 95% same-day solution implementation. We maintain certified spare parts inventories across 3 continental hubs with real-time inventory tracking.
