Three-dimensional Wrapping Machine

Three-dimensional Wrapping Machine

The Three-dimensional Wrapping Machine seamlessly integrates film feeding, folding, and heat sealing to create compact, decorative, and protective packages, all through a PLC-controlled system that ensures precise film adjustment and stable, reliable operation.

  1. Speed:
    10-20 Packs/min
  2. Packaging material:
    BOPP/ PVC
p-i-6.webpGET A QUOTEsign-4.webp
Product Overview

This machine uses the conveyor belt to supply the packaged goods, and a series of actions such as film feeding, folding and heat sealing to encapsulate the goods. It makes the packages achieve the effect of compactness, decoration, beauty, anti-counterfeiting and moisture-proof.

This machine is an integrated product of machine, electricity and gas. It is controlled by PLC man-machine interface; the film feeding system is controlled by stepping motor, which can adjust the film feeding size arbitrarily; the rest of the movements are all driven by pneumatic cylinders, which is stable and reliable in operation.

Product Parameters
Item Parameters
Packaging material, rolled material core inner diameter BOPP/ PVC   Ф76
Packing speed 10-20 packs/min
Package size Length 60-300mm
Width 50-250mm
Thicker 25-100mm
Power source 220V/50HZ
Power consumption 6.5KW
Weight 750Kg
Main air line working pressure 0.6Mpa
Pass rate of film sealing >98%
Seal film breakage rate <1%
Size Host: 2225×880×1800 mm
Detail display
of each workstation on the production line

Customized Standard & Non-standard Vial Blister Packing-Cartoner
HIGHNOW Custom Blister Packaging Lines — break packaging limitations. Customized for various vials with custom blister designs. Compatible with PVC, PP, APET, aluminum foil and other materials. Delivers efficient and reliable packaging solutions.
SEND AN INQUIRY
Recommended Products
Laser Coder Machine
Laser Coder Machine
Engineered for versatility, this laser coder provides permanent, high-contrast marks on various materials including PET and PP, supporting everything from simple text to precision 2D codes at any prod...
Corner Sticker Machine
Corner Sticker Machine
A device that uses a robotic arm to feed labels into corners and then applies them to the surface of the package by applying pressure.
Straw Drop Machine

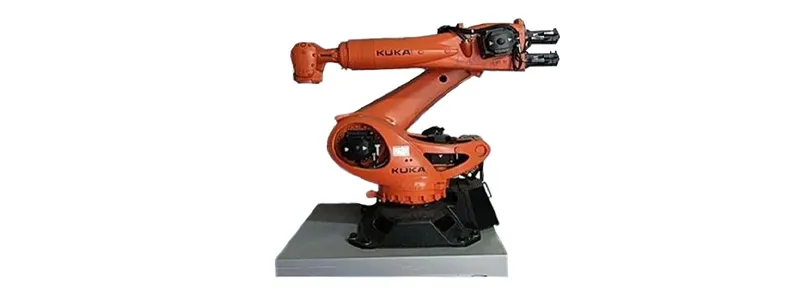

Palletising Machine
