Engineered for versatility, this laser coder provides permanent, high-contrast marks on various materials including PET and PP, supporting everything from simple text to precision 2D codes at any production speed.
GET A QUOTE
DOWNLOAD

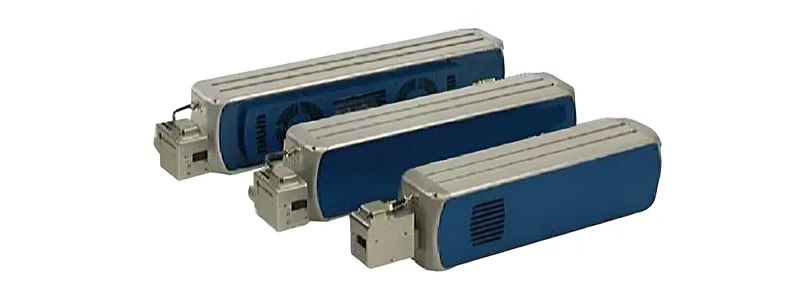

The latest compact laser head design is flexible and fast, even in small spaces.
Laser coding systems can mark all types of text, images and 2D codes. They provide permanent, high-quality marking on a wide range of materials for low to high speed production line applications.
• Permanent marking on PET and PP materials
• Laser marking with high quality 2D codes
• High quality marking at the highest line speeds
| Model | D120i | D320i | D620i |
| Laser type | Sealed wave dioxide laser, 45,000 hours MTBF | ||
| Laser wavelength | 10.6μm (9.3μm blue light tube, 10.2μm iris light tube optional) | ||
| Laser energy | 10W (blue light tube optional) |
30W (blue light tube optional, iris light tube optional) |
60W |
| Marking characteristics | |||
| Characters per second | 800* | 1500* | 2000* |
| Line speed | 200 m/min* | 400 m/min* | 600 m/min* |
| Number of lines marked | Unlimited* | ||
| Character height | 0.6mm - Maximum coding range | ||
| Font | 24 fonts, multiple languages | ||
| Coder: i-Tech 10 | 58×58, 68×68, 84×84, 102×102, 136×136, 180×180 | ||
| Coder: i-Tech 15 | 200×254, 262×334, 356×452, 453×581 | ||
| Lens specifications | i-Tech 10: 80, 100, 120, 150, 200, 250 mm i-Tech 15: 250, 325, 450 mm |
||
| User interface | Web browser-based graphical user interface (TouchPanel color touch screen optional), what you see is what you get, languages in English, German, French, Czech, Spanish, Dutch, Danish, Finnish, Polish, Portuguese, Italian, Hungarian, Slovak, Turkish, Arabic, Romanian, Korean, Russian, Swedish and Chinese. | ||
| Operating system | Windows CE | ||
| Marking software | Dynamark Ⅲ laser marking software | ||
| Scanner head | i-Tech scanning head, selectable positioning in various directions, including axial | ||
| Laser head | Stainless steel and anodized aluminum | ||

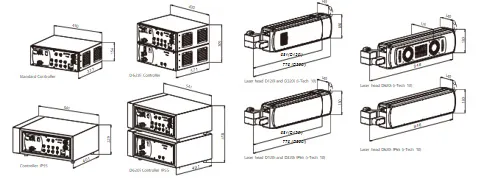

| Weights and dimensions | 16.5 kg 681 x 140 x 180 mm |
22 kg 776 x 140 x 180 mm |
27.3 kg, 846 x 140 x 180 mm (IP65) 30 kg, 946 x 140 x 180 mm |
| Control cabinet | |||
| Material | Stainless steel structure | ||
| Weights and dimensions | 14.5 kg, 430 x 371 x 154 mm (W×D×H) (IP55) 17.5 kg, 541 x 401 x 229 mm (W×D×H) |
27 kg, 430×371×309 mm (W×D×H) (IP55) 34 kg, 541×401×458 mm (W×D×H) |
|
| Cable length | 4.5 m, 9 m optional | ||
| Inputs/outputs | |||
| Product monitoring input | NPN/PNP/24V detector | ||
| Product speed monitoring | Synchronizer or synchronization signal | ||
| Signal outputs | Laser ready signal, printing signal, fume purifier control signal, compressed air control | ||
| Interfaces | RS232, Ethernet (10/100 Mbit), USB port | ||
| Power requirements | 88-132V/170-264V, 47-63Hz, 1050VA (D120/D320) / 2000VA (D620) | ||
| Environmental requirements | |||
| Controller | IP54 standard controller, IP55 optional controller | ||
| Laser head | IP54 standard laser head, IP65 optional laser head | ||
| Operating temperature | 5℃-40℃ | ||
| Operating humidity | Up to 90% RH, non-condensing | ||
| Options | Infrared beam positioning, client input/output, network and remote control software (TCP/IP), smoke extraction device suction port, USB backup storage kit, bracket kit, daisy chain, "Rapidscan" technology | ||
| *Number of characters printed per second. Production line speed depends on the material and marking content. | |||
