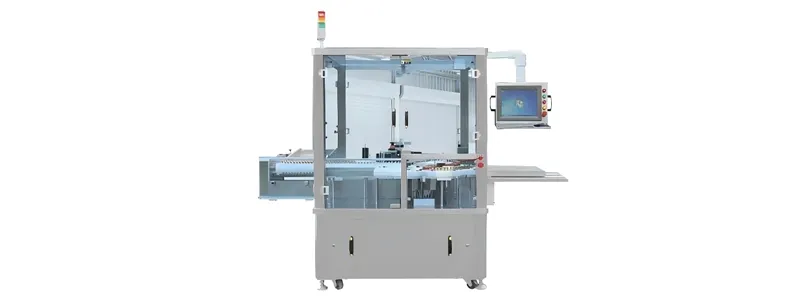

S-750 High Speed Rotary Labeling Machine

Touch control man-machine operation interface, abnormalities can be displayed on the man-machine interface and guide troubleshooting, easy to operate, anyone can quickly use this equipment. There are 50 groups of memory function (including bottle diameter and labeling length and other parameters), when changing different specifications of the product without re-setting, can be called directly, greatly improving work efficiency.

Device descripxion


• This equipment is dedicated to the labeling of round bottles.
• The labeling main head is a three-stage labeling system, which is divided into label supply, label pulling and backing paper recycling system, each system is controlled by a separate motor to ensure the fast and stable supply of labels, and to ensure the speed and precision of labeling.
• Use vertical horizontal direction to feed bottles, stable feeding, easy to operate.
• When the bottles on the feeding conveyor are less than a certain amount, the machine can automatically reduce the labeling speed.
• The use of screw to achieve bottle separation, and the star plate mechanism to use the same power to achieve synchronous operation, the action is accurate and error-free, there will be no bottle jamming and broken bottles, to ensure stable operation of the equipment
• Wheel-attached roll-on bottles for stronger label adhesion.
• Back-end collection platform (opxional) for easy collection, organization and packaging of finished products
