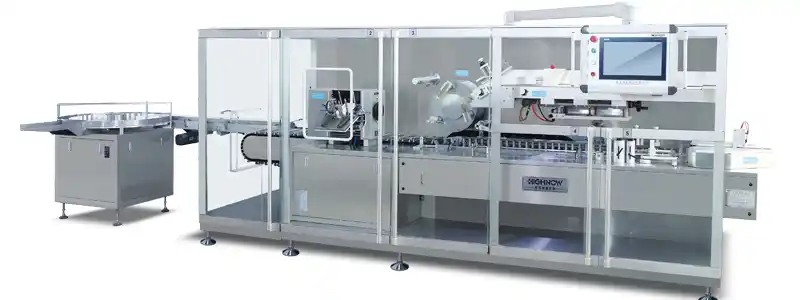

The ZHJ-500 Fully-Automatic Cartoning Machine automates the entire process from leaflet folding to box sealing, offering reliable and versatile packaging for blisters, bottles, and vials, with easy integration into existing production lines.
GET A QUOTE
DOWNLOAD
This machine is used to take Alu/PVC medical plate or plastic bottle (vitreous bottle) to flling in paper box automatically. It can perform automatically the whole process of folding and conveying of leaflet, paper box forming, batch number printing and box sealing. The machine can also be linked to work with Alu/PVC packing machine, bottle fling machine and transparent film three dimensional packing machine.
| cartoner part | Specifcation of carboard case (L×W×H) | (75-210)×(33-85)×(15-75)mm |
| Leaflet of medicine (L×W) | (60-200)×(90-300)mm | |
| Leaflet quality requirement | 60-75 g/m² | |
| Cartoner speed | 400 carton/min | |
| Pressure | 0.6-0.8 mpa | |
| Power | 380V 50Hz | |
| Packaging demensions (L×W×H) | 13400×2600×2000mm | |
| Weight | 12000 kg | |
| Total power of machine | 38KW | |
| Total air-consumption (max) | 500 L/min | |
 |
 |
 |
 |
 |
 |
